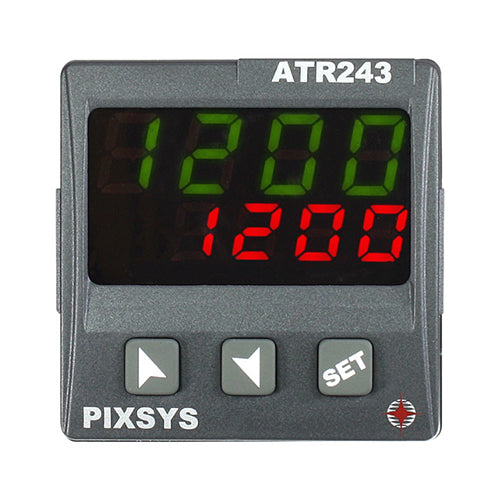

ATR243-20ABC

Single loop PID controller with four set-points, dimensions 48 x48 mm (front panel) x 125mm, 1 analog input with many options for sensor configuration, 1 PNP digital input, 1 digital relay output 8 A, 1 digital relay output 8 A or 1 PNP 12 Vdc 30 mA max digital output or 1 analog output 4…20 mA / 0…10 Vdc, extended AC/DC power supply range 24...230 V, display with 4 green digits + 4 red digits + 6 indication LEDs, front panel protection IP54 (IP65 with gasket), IP30 enclosure, IP20 terminal blocks.
