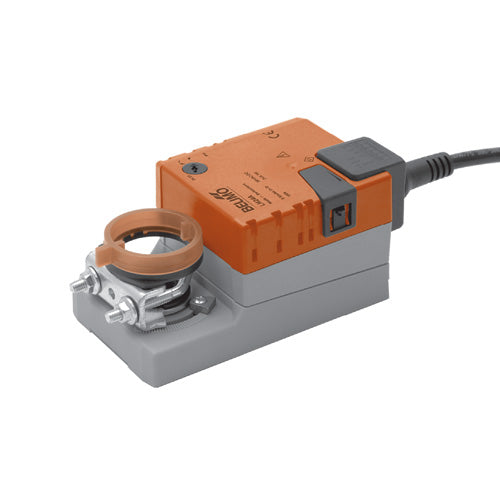

GM24A-MF (replaces GM24-MFT)

Damper actuator, torque 40 Nm, running time 150 s, rotation angle 95°, power supply AC/DC 24 V, proportional control signal in the range 2...10 V or adjustable (programmable), position feedback signal in the range 2...10 V or adjustable (programmable), protection IP54, manual override with push button, 1 m long PVC connection cable, reversible direction of rotation (right/left), integrated mechanical rotation angle limiter, position indicator, for air dampers up to approx. 8 m².
