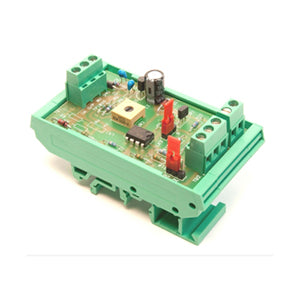

The IO/RIM module converts a 3-wire potentiometric signal or a 2-wire resistance (135, 1000 or 10,000 ohms) into a proportional 0-10 Vdc signal. It provides an output proportional to each selectable input resistance value (via a jumper on the module). The IO/RIM module is generally used to convert a potentiometric signal from electromechanical regulators made by CONTROLLI SPA or HONEYWELL with a 135 Ohm output, or to position proportional actuators with a simple 1 or 10 KOhm potentiometer. Power supply: 24V AC or DC. Consumption: 0.25 VA. Connectors: for cables with a maximum cross-section of 2.5mm. Operating temperature: -10… +40˚C. Dimensions: 82 x 45mm x 45mm. DIN rail mounting.
