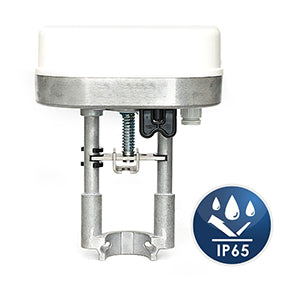

MVE504R-65

Configurable actuator for valves, with long mounting bracket, with spring return (emergency function), with emergency return to fully open or closed valve position selectable with jumper, proportional control signal (0...10 V, 2...10 V, 0...5 V, 2...6 V, 5...10 V, 6...10 V, 4...20 mA) and 3-point, force 400 N, power supply AC/DC 24 V, running time 15...60 s, stroke 5...60 mm, power consumption 13 VA, complete with mounting bracket for connection to the valve body, weight 1.5 kg, protection IP65
