Item code

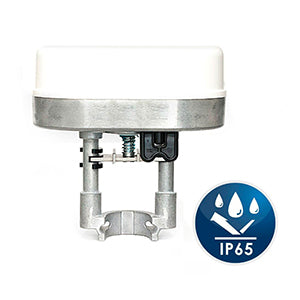

MVE510SR-65
In stock
Description
Configurable valve actuator, short stroke, with spring return (emergency function) with emergency return to fully open or closed valve position selectable with jumper, proportional control signal (0...10 V, 2...10 V, 0...5 V, 2...6 V, 5...10 V, 6...10 V, 4...20 mA) and 3-point, force 1000 N, power supply AC/DC 24 V, running time 15...60 s, stroke 5...60 mm, consumption 13 VA, complete with mounting bracket for connection to the valve body, weight 1.5 kg, protection IP65
Technical specifications
PROPERTY
VALUE
Control signal
Configurable
Power supply
AC/DC 24 V
Force / Torque
0...1000 N (linear)
Weight
1.5 kg
