Item code
SH522
Esaurito - Non più ordinabile
Description

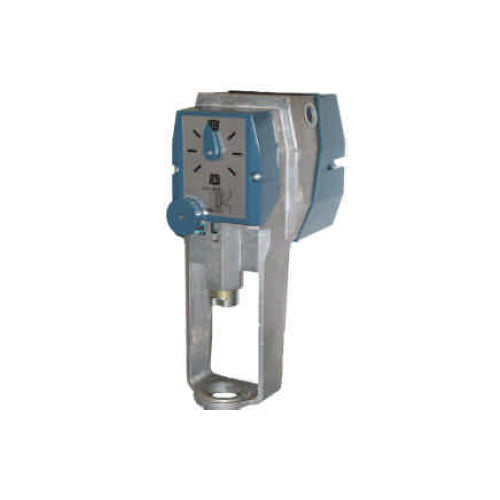

Proportional valve actuator, long bracket, proportional control signal selectable via jumpers (0...10 V, 2...10 V, 0...5 V, 2...6 V, 5...10 V, 6...10 V, 4...20 mA), force 1200 N, power supply AC 24 V, stroke time 84 s, stroke 16...45 mm, power consumption 9 VA, complete with mounting bracket for connection to the valve body, weight 1.5 kg, protection IP40.
Technical specifications
PROPERTY
VALUE
Control signal
Proportional
Power supply
24 V AC
Force / Torque
1001...2000 N (linear)
Weight
1.5 kg
