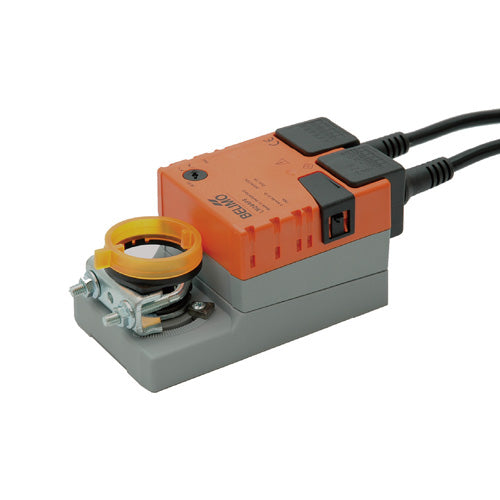

SM230ASR

Damper actuator, torque 20 Nm, running time 150 s, rotation angle 95°, power supply AC 230 V, proportional control signal in the 2...10 V range, position feedback signal in the 2...10 V range, IP54 protection, manual override with pushbutton, 1 m PVC connection cable, reversible direction of rotation (right/left), integrated mechanical rotation angle limiter, position indicator, for air dampers up to approx. 4 m².
