Item code
SSB161.05HF (replaces SSB61)
In stock
Description

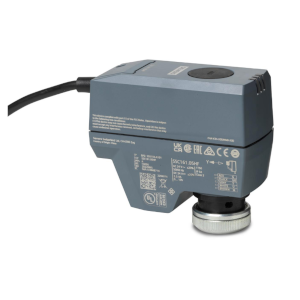

Electric actuator for modulating control (0...10 VDC), force 200 N, stroke 1.2...6.5 mm, plastic housing, position indicator, manual override, IP40. Power supply 24 V AC/DC. Delay 75 s. Automatic stroke calibration system and power cut-off at end of stroke. Supplied as standard with a 1.5m connection cable. Can be coupled with SIEMENS VMP45, VVP45 and VXP45 series valves
Technical specifications
PROPERTY
VALUE
Control signal
Proportional
Power supply
AC/DC 24 V
Force / Torque
0...1000 N (linear)
Weight
0.298 kg
