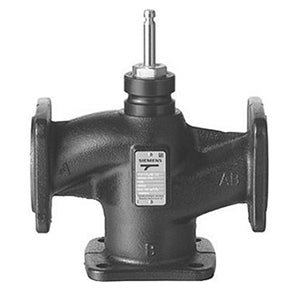

VXF22.25-10

Three-way globe mixing or diverting valve, DN25 PN6 KVS= 10, for hot or cold water, cast iron body EN-GIL-250 with flanged connections, sealing system composed of brass elements, EPDM o-ring, PTFE sleeve, port A-AB logarithmic control characteristic (linear up to 0...30%), port B-AB linear control characteristic, port A-AB leakage rate < max 0.02% of Kvs, port B-AB leakage rate < 2% of Kvs, fluid temperature limits -10...+130 °C, can be coupled with SAX, SKD, SKB, and SKC series actuators. Maximum applicable differential pressure: see technical bulletin with reference to the type of actuator applied.
