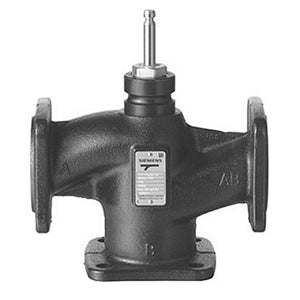

VXF22.40-16

Three-way globe mixing or diverting valve, DN40 PN6 Kvs= 16, for hot or cold water, EN-GJL-250 cast iron body with flanged connections, sealing system consisting of brass components, EPDM O-ring, PTFE sleeve, logarithmic A-AB port pressure drop characteristic (linear up to 0...30%), linear B-AB port pressure drop characteristic, A-AB port leakage < maximum 0.02 % of Kvs, B-AB port leakage < 2% of Kvs, fluid temperature limits -10...+130 °C, can be paired with SAX, SKD, SKB and SKC series actuators. Maximum applicable differential pressure: see technical bulletin referring to the type of actuator used
