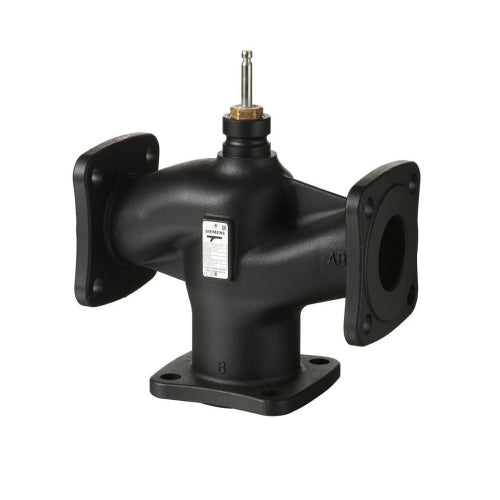

VXF32.65-63 (replaces VXF31.65-63)

Three-way globe mixing or diverting valve, DN65 PN16 KVS= 63, for hot or cold water, cast iron body EN-GIL-250 with flanged connections, sealing system made of brass components, EPDM o-rings, PTFE sleeve, logarithmic port A-AB control characteristic (linear up to 0...30%), linear port B-AB control characteristic, port A-AB leakage rate < 0.02% of Kvs, port B-AB leakage rate < 3% of Kvs, fluid temperature limits -10...+150 °C, can be coupled with SAX, SKD, SKB and SKC series actuators. Maximum applicable differential pressure: see technical bulletin with reference to the type of actuator applied.
