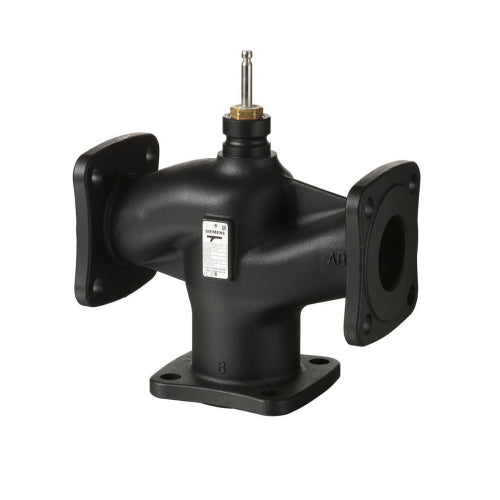

VXF32.80-100 (replaces VXF31.80-100)

Three-way globe mixing or diverting valve, DN80 PN16 KVS= 100, stroke 20 mm, for hot or cold water, cast iron body EN-GIL-250 with flanged connections, sealing system composed of brass elements, EPDM o-ring, PTFE sleeve, port A-AB logarithmic control characteristic (linear up to 0...30%), port B-AB linear control characteristic, port A-AB leakage rate < maximum 0.02% of Kvs, port B-AB leakage rate < 3% of Kvs, fluid temperature limits -10...+150 °C, can be coupled with SAX, SKD, SKB, and SKC series actuators. Maximum applicable differential pressure: see technical bulletin with reference to the type of actuator applied.
