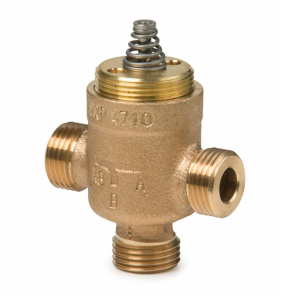

VXP47.20-4

Three-way valve with seat and plug, with bronze body, threaded connections according to ISO 228/1 and knob for manual control. Threaded connection: G 3/4 [in], DN: 20 [mm], Kvs: 4 [m³/h]. Suitable for controlling terminal units, chilled ceilings, and zone heating. Suitable for hot and cold water (VDE 2035), max. 50% glycol. Can be used with actuators from the SFP.. and SSF161.05HF series. Stroke: 5.5 [mm]. Leakage: max. 0.05% of Kvs value. Return spring force: 200 [N]. Fluid temperature: 2…110 [°C]. Characteristic: equal-percentage. Valve body: Bronze RG5. Stem, plug, and seat: Stainless steel. Mounting: vertical or horizontal. VXP47.. valves can only be used as mixing valves.
