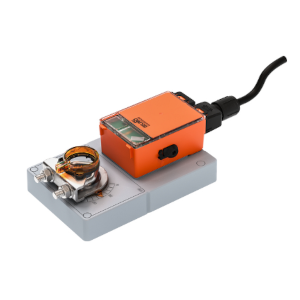

GM24SR.12

Damper actuator, torque 40 Nm, running time 150 s, rotation angle 95°, power supply AC/DC 24 V, proportional control signal in the range 2...10 V, position feedback signal in the range 2...10 V, protection IP54, manual override with push button, PVC connecting cable length 1 m, reversible direction of rotation (right/left), integrated mechanical rotation angle limiter, position indicator, for air dampers up to approx. 8 m²
