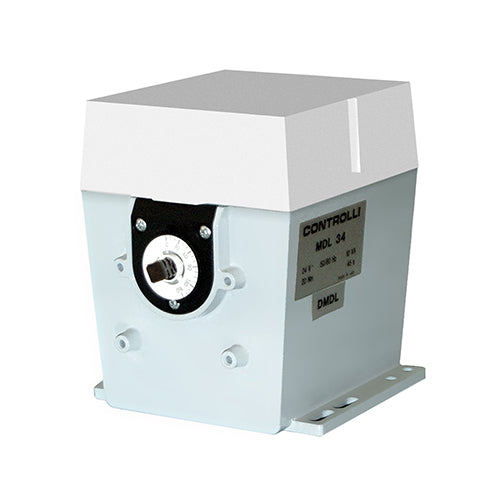

MDL24PA2

Industrial servo actuator used in civil and industrial control systems, for controlling dampers and other devices that require control of an angular position within a maximum angle of 160° (e.g., to modulate the flame of gas or oil burners), two or three-position control, timing 45…80 s, torque 20 Nm, power supply 230 Vac 50/60 Hz, dual shaft output, IP55 protection rating, internal shaft release mechanism to allow free rotation of the shaft in both directions, external graduated position indicator mounted on the shaft outputs. Complete with 1 KOhm potentiometer
