Item code
MVE204S-65
On backorder
Description

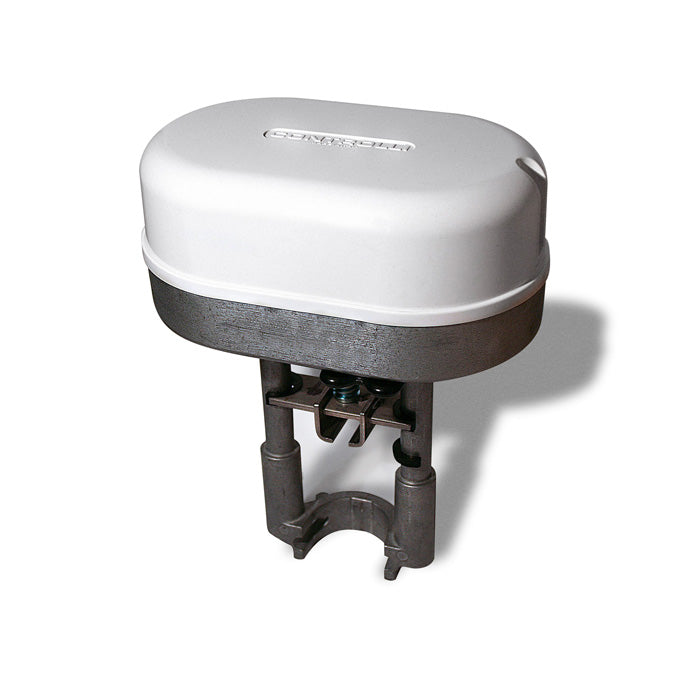

Configurable actuator for short-stroke valves, proportional control signal (0...10 V, 2...10 V, 0...5 V, 2...6 V, 5...10 V, 6...10 V, 4...20 mA) and 3-point control, force 400 N, power supply AC 230 V, running time 15...60 s, stroke 5...60 mm, power consumption 13 VA, complete with mounting bracket for connection to the valve body, weight 1.5 kg, protection IP65.
Technical specifications
PROPERTY
VALUE
Control signal
Configurabile
Power supply
AC 230 V
Force / Torque
0...1000 N (lineare)
Weight
1.6 kg
