Item code

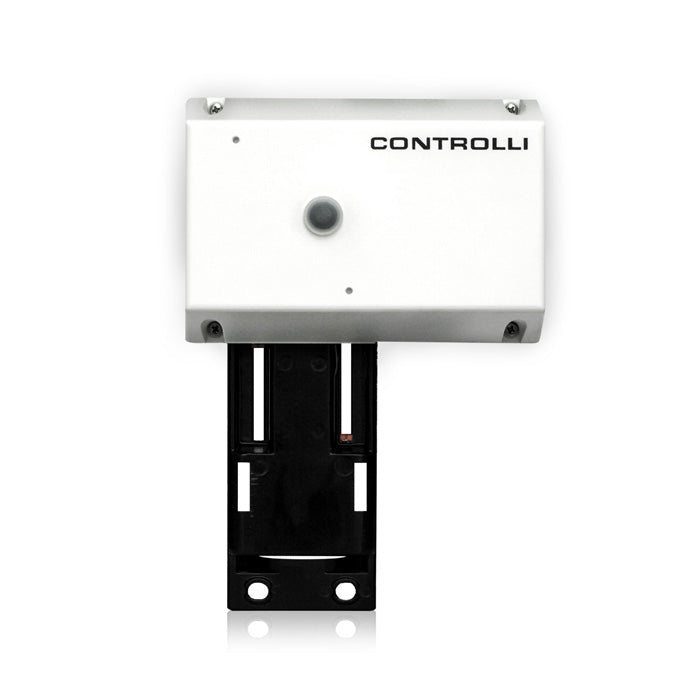

MVH56 (replaces MVL56)
On backorder
Description
Proportional actuator for valves, voltage control in the ranges: 4..7 V, 6..9 V, 0..10 V, 2..10 V, 1..5 V and current control in the range 4..20 mA, force 1500 N, timing 22-33-60 s (depends on the type of connected valve), power supply AC 24 V, power consumption 12 VA, stroke 0 .. 45 mm, complete with mounting bracket for connection to the valve body, IP55 protection.
Technical specifications
PROPERTY
VALUE
Control signal
Proportional
Power supply
24 V AC
Force / Torque
1001...2000 N (linear)
Weight
3.0 kg
Documentation
