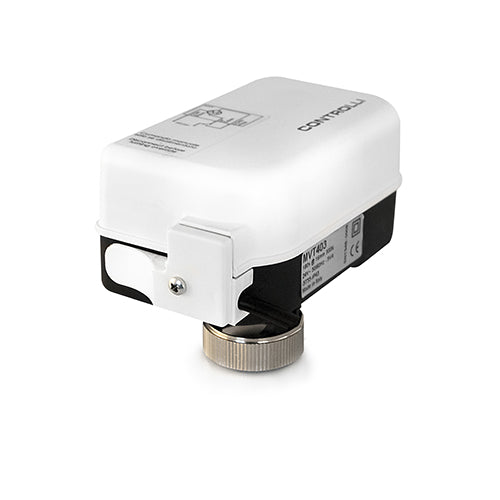

Item code
MVT503SPS107
On backorder
Description
Proportional actuator designed for control applications on two/four-pipe fan-coil units, small air handling units, solar systems, and the control of post-heating and dehumidification coils where small and compact motorized valves are required. Configurable proportional control and 0...10 Vdc feedback signal, 300 N force, 9 mm stroke, IP43 protection rating, 24 Vac 50/60 Hz power supply, 3.6 VA consumption. The MVT503SPS107 model allows for easy installation on valves with an M28x1.5 threaded ring.
Technical specifications
PROPERTY
VALUE
Control signal
Configurable
Power supply
24 V AC
Force / Torque
0...1000 N (linear)
Weight
0.25 kg
