Item code
NRC24A-SR
On backorder
Description

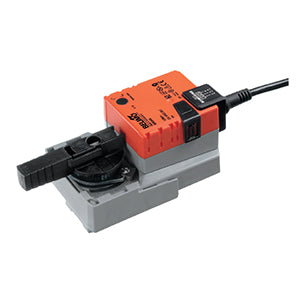

Rotary actuator for ball valves, 10 Nm torque, 45 s timing, 90° rotation angle, AC/DC 24 V power supply, proportional control signal in the 2...10 V range, position feedback signal in the 2...10 V range, IP54 protection, manual override with push button, 1 m long PVC connection cable, reversible rotation direction (right/left), integrated mechanical rotation angle limiter, position indicator.
Technical specifications
PROPERTY
VALUE
Control signal
Proportional
Power supply
AC/DC 24 V
Force / Torque
0...10 Nm (rotary)
Weight
0.55 kg
