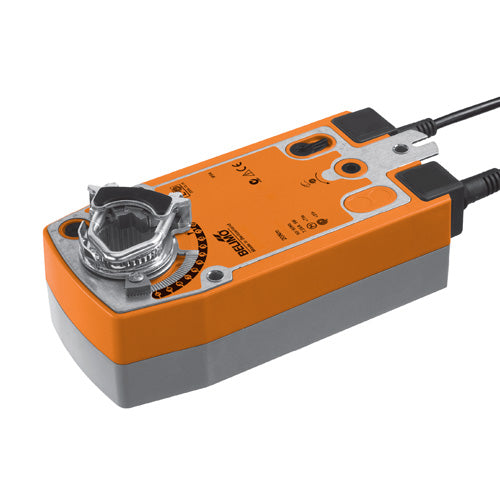

SF24A-SR-S2

Spring return actuator for dampers, torque 20 Nm, running time 150 s, rotation angle 95°, power supply AC/DC 24 V, proportional control signal in the range 2...10 V, position feedback signal in the range 2...10 V, auxiliary contacts 2 x SPDT (1 x fixed 10% / 1 x adjustable 10 ... 90%), protection IP54, manual override with integrated position stop, 1 m PVC connection cable, reversible rotation direction (right/left), position indicator, for air dampers up to approx. 4 m².
