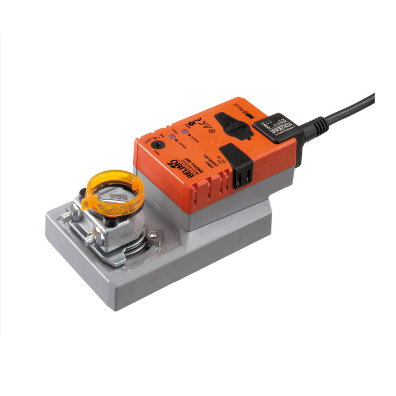

SM24A-MP

Damper actuator, torque 20 Nm, running time 150 s, rotation angle 95°, power supply AC/DC 24 V, proportional control signal in the range 2...10 V or adjustable (programmable), position feedback signal in the range 2...10 V or adjustable (programmable), IP54 protection, manual override with push-button, 1 m PVC connection cable, reversible direction of rotation (right/left), integrated mechanical angle of rotation limiter, position indicator, for air dampers up to approx. 4 m², communication via Belimo MP-Bus
