Item code
SR24A-SR
In stock
Description

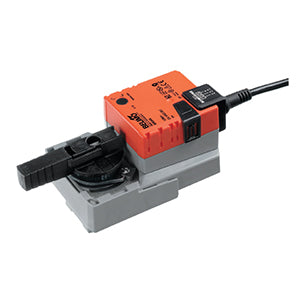

Rotary actuator for ball valves, torque 20 Nm, timing 90 s, rotation angle 90°, power supply AC/DC 24 V, proportional control signal in the range 2...10 V, position feedback signal in the range 2...10 V, IP54 protection, manual override with push-button, PVC connection cable 1 m long, reversible rotation direction (right/left), integrated mechanical rotation angle limiter, position indicator.
Technical specifications
PROPERTY
VALUE
Control signal
Proportional
Power supply
AC/DC 24 V
Force / Torque
11...20 Nm (rotary)
Weight
1.0 kg
