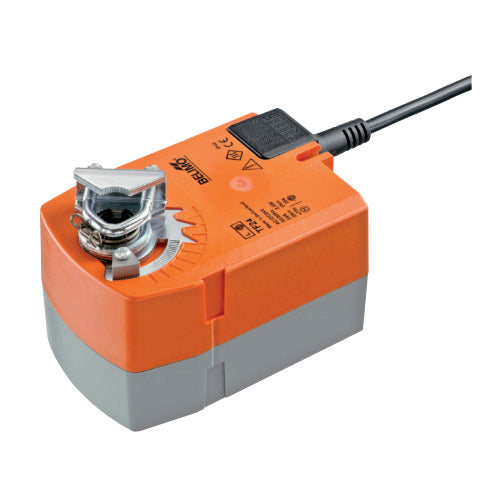

TF230-SR

Spring return actuator for dampers, torque 2.5 Nm, timing 150 s, rotation angle 95°, power supply AC 85...264 V, proportional control signal in the range 2...10 V, position feedback signal in the range 2...10 V, IP54 protection, manual override with integrated position stop, 1 m long PVC connection cable, reversible rotation direction (right/left), position indicator, for air dampers up to approximately 0.5 m².
